KAMA ProCut 58 Foil

Flexible post-press and finishing for small-size sheets.

Post-press solutions for classic digital print formats. With and without finishing. To do this, we have developed the world's first die cutting, embossing and finishing machine for small-size sheets. KAMA ProCut 58 Foil covers everything from cutting and creasing to cold embossing and Braille, all the way up to kiss-cutting and hot-cutting of plastics – plus first-class hot foil stamping and embossing. The flexibility of the KAMA ProCut 58 Foil is almost unrivalled.

The compact professional cutter finishes printed materials like business cards, vouchers, product tags for luxury labels or tickets, greeting cards, attractive mailshots and much, much more. Find new ways to add value in-house and start producing short runs efficiently and profitably for your customers. Surely you can find space for this compact finishing die cutter!

Applications

  • Cutting
  • Creasing
  • Perforating
  • Cold embossing
  • Braille
  • Kiss-cutting
  • Hot foil stamping
  • Holograms
  • Hot-cutting of plastics

HIGHLIGHTS

Versatility

For a flexible post-press setup.

With ten applications for post-press and finishing, the ProCut 58 Foil can be used for many different tasks. Bring new ways to add value in-house and add flexibility to your post-press setup.

Minimal set-up times

Conversion in just 5 minutes?

Easy to achieve with the ProCut 58 Foil. Whether for setting up your next order or changing from hot foil stamping to cutting/creasing.

Highest register accuracy

For the most exacting standards.

KAMA ProCut die cutting and stamping machines offer register accuracy that is unrivalled in the marketplace. Digital prints are also cut, embossed and finished with the KAMA AutoRegister to within an accuracy of 0,1 mm.

Maximising uptime

Time-saving features

The high uptime of the KAMA cutter is thanks to the short set-up times, the mobile KAMA heating plate and the changeable carrier plate. The heating-up process for hot foil stamping is very fast.

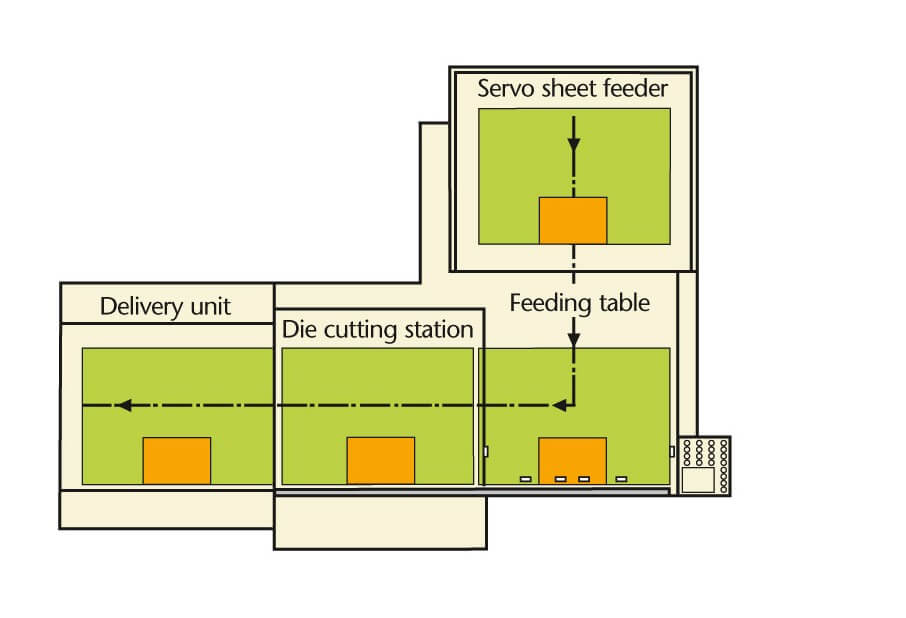

Small footprint

Varied applications in the smallest possible space.

With a footprint of less than 5 m2, KAMA ProCut 58 Foil makes do with very little space. You simply cannot pack more functionality into less space.

Continue using your existing tools

For the seamless transition.

Thanks to the universal chase on the KAMA die cutter, you can continue to use your existing tools without any problems whatsoever. This also applies to small cutting dies.

Specifications for the ProCut 58 Foil

Processable materials & specs

Paper from 80 g/m²
Paperboard max. 800 g/m²
Plastics 80 - 800 g/m² (bis 1 mm)
Maximum sheet size 580 x 400 mm (22 27/32 x 15 3/4 in)
Minimum sheet size 210 x 148 mm (8 1/4 x 5 13/16 in)
Speed* 6,000 sheets/h
Cutting force 120 t (1.2 MN)
Maximum cutting size 560 x 380 mm (22 x 15 in)
Maximum stamping size 560 x 360 mm (22 x 14 5/32 in)
Gripper margin 10 mm
Dimensions (length x width) 2.6 x 1.75 m
* dependent on material, sheet size and die configuration Technical data and figures are subject to change.

Converting & Embellishment for:

In terms of sheet size and applications, ProCut 58 Foil is an ideal match for

digital printing presses like

  • HP Indigo 7900, 5900
  • Xerox IGEN
  • Ricoh 7900
  • Heidelberg Versafire
  • Kodak Nexpress

and for analogue machines with small sheet sizes such

  • Heidelberg Speedmaster 52
  • Ryobi 520

Options

Example equipment for the ProCut 58 Foil

  • Perfect for digital: The AutoRegister aligns every sheet based on the print image.
  • Universal chase for existing cutting dies
  • Changeable carrier plate for hot foil/holograms
  • Magnetic plate for cutting fine contours and kiss-cutting adhesive labels
  • Device for hot cutting and creasing of plastics

Applications of the ProCut 58 Foil

Eye-catching hot foil to grab more attention

Embossing with transparent hot foil

Hot foil stamping with micro-structure
